Understanding Glass Cutting Precision
When you envision a master bath remodel or a new glass office partition in your Naples residence, you likely imagine seamless lines and a perfect fit. However, in the world of architectural glass, "perfect" is defined by a rigorous set of technical standards known as fabrication tolerances. Understanding glass cutting precision is not just for the engineers; it is the key to ensuring your high-end installation looks flawless and functions safely for years to come.
At Luxurious Glass, we believe that an informed homeowner is a satisfied one. With over 50 years of combined experience, our family-operated team has seen how even a 1/16-inch error can compromise the integrity of a custom fit glass project.
This guide delves into the technical "margin of error" in glass manufacturing and why specialized local expertise is required to navigate the unique challenges of Florida architecture.
What are Glass Fabrication Tolerances?
In manufacturing, a "tolerance" is the permissible limit of variation in a physical dimension. No machine can cut a piece of glass to an infinite mathematical point; there is always a tiny range of acceptable deviation. For high-end residential work, these tolerances are governed by the ASTM International standards, specifically ASTM C1036 and C1048.
When we talk about glass cutting precision, we are measuring several factors:
Dimensional Tolerance: The variation in the height and width of the pane.
Squareness: How close the corners are to a perfect 90-degree angle.
Thickness: The slight variance in the depth of the glass sheet itself.
Edge Work: The consistency of the polished or beveled finish.
For a standard custom fit glass installation in a Naples luxury home, the industry standard for dimensional tolerance is often $\pm 1/16$ inch for 1/4-inch glass and up to $\pm 1/8$ inch for heavier 1/2-inch glass. While this sounds small, it becomes a major factor when fitting glass into tight openings or against tiled surfaces.
The Reality of "Out of Square" Walls in Naples
One of the most significant arguments for choosing custom fit glass over standard off-the-shelf sizes is the reality of home construction. Even in the most prestigious Naples developments, walls are rarely perfectly plumb, and floors are seldom perfectly level. This condition is known in the industry as being "out of square."
A standard-sized shower door from a big-box retailer assumes your walls are a perfect 90 degrees. If your wall leans just 1/4 inch from top to bottom, a common occurrence due to settling or thick tile mortar, a standard door will leave an uneven gap. This not only looks unprofessional but can lead to water leaks and mechanical stress on the hinges.
Industry Standards for Glass Dimensions
The following table outlines the acceptable tolerances for different glass thicknesses used in residential projects, based on ASTM C1036 guidelines.
Source: ASTM C1036 Standard Specification for Flat Glass
Custom Fit Glass vs. Standard Sizes: The Performance Gap
When you opt for standard sizes, you are forcing your home to adapt to the glass. When you choose custom fit glass from Luxurious Glass, the glass is engineered to adapt to your home.
● Tapered Cuts: If we identify out of square walls during our measurement phase, we can order "out-of-plumb" cuts. This means the glass is cut at a slight angle to follow the contour of your wall exactly, maintaining a consistent 1/8-inch gap for the sealant.
● Hardware Alignment: Custom fabrication allows us to specify the exact location of hinge cut-outs and handle holes. This prevents the "sagging" often seen in poorly fitted standard units.
● Safety & Tempering: Once glass is tempered (the process that makes it safety glass), it cannot be cut or drilled. A standard door that doesn't fit cannot be trimmed. Custom orders ensure the glass is perfect before it goes into the tempering furnace.
Are your walls ready for glass?
Don’t leave your high-end remodel to chance. Schedule a precision measurement with our experts and ensure your glass fits perfectly the first time.
The Fabrication Process at Luxurious Glass
Achieving true glass cutting precision requires a blend of advanced technology and seasoned craftsmanship. At Luxurious Glass, our fabrication workflow is designed to eliminate the guesswork associated with standard sizes and account for the unique architectural quirks of your Naples home.

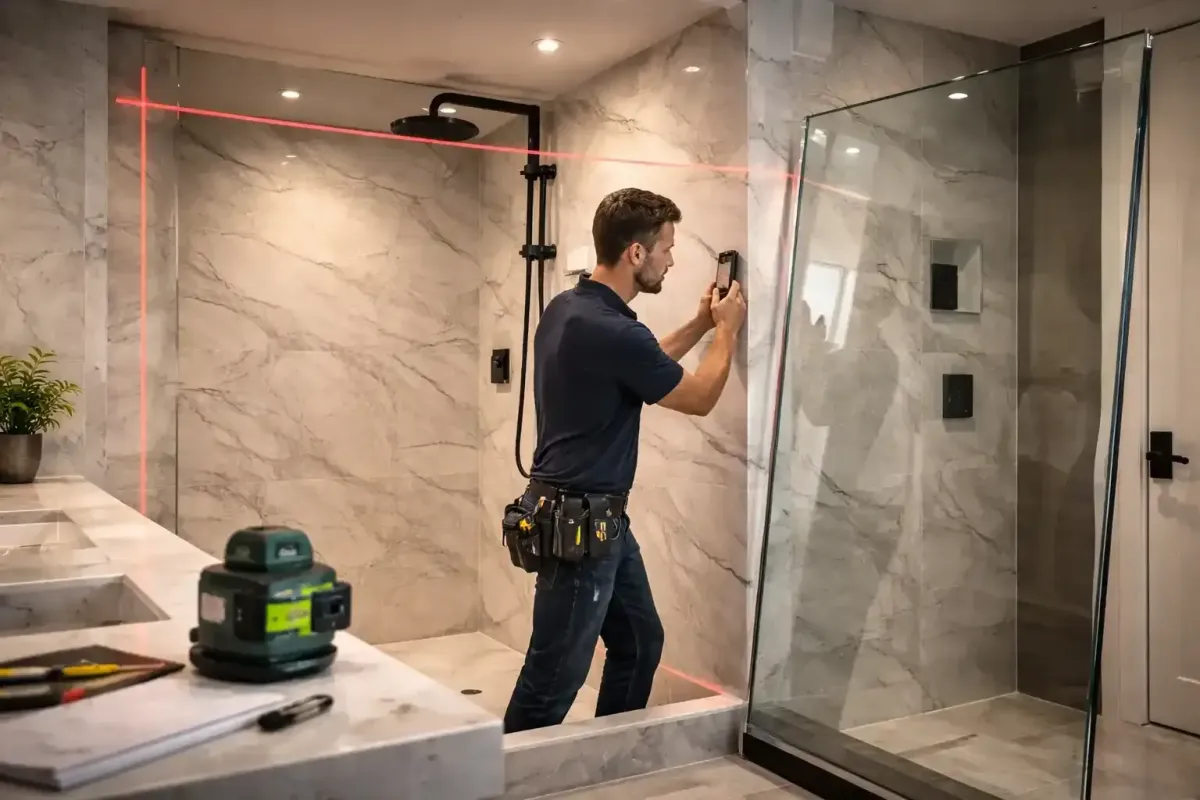

● Digital Site Survey: We begin by using laser levels and digital protractors to map the exact geometry of your opening. This allows us to identify out of square walls or unlevel floors that a standard tape measure might miss.
● CAD Design & Engineering: Your specific measurements are input into Computer-Aided Design (CAD) software. This step calculates the necessary deductions for hinges, seals, and handle holes, ensuring every component aligns perfectly.
● CNC Precision Cutting: The data is sent to a Computer Numerical Control (CNC) machine. This automated system executes glass cutting precision to within a fraction of a millimeter, far exceeding the accuracy of manual cutting.
● Edge Treatment & Polishing: Once cut, the glass edges undergo a multi-stage diamond polishing process. This not only creates a beautiful, high-lustre finish but also removes micro-fractures, significantly increasing the structural strength of your custom fit glass.
● The Tempering Process: After all cuts and holes are finalized, the glass is heated to over 1,100°F and rapidly cooled. This "tempering" makes the glass four to five times stronger than standard glass and ensures it meets the safety standards.
● Quality Control Inspection: Before the glass leaves the facility, it is inspected under high-intensity lighting to ensure it meets ASTM fabrication tolerances for clarity, dimension, and squareness.
Florida Building Code: Safety and Structural Integrity
In Naples, every custom glass install must comply with the Florida Building Code. The code mandates that glass in "hazardous locations", like showers, doors, and large windows, must be tempered.
Because tempered glass cannot be modified after it is made, the initial glass cutting precision is vital. If a pane is fabricated slightly too large, it cannot be "shaved down" on-site. It must be completely remade. This is why Luxurious Glass emphasizes the "Measure Twice, Cut Once" philosophy. We handle all the permitting and code compliance, so you can have peace of mind that your installation is legal and safe.
How Out of Square Walls Affect Longevity
When glass is forced into an opening that isn't square using "adjustable" hinges or thick silicone, it places "point pressure" on the edges. Glass is incredibly strong in compression but vulnerable to edge impacts. If a door is constantly hitting a wall or if the hinges are under lateral tension because of a poor fit, the risk of spontaneous breakage increases.
A custom fit glass solution eliminates this tension. By following the lines of your out of square walls, we ensure that the weight of the glass is distributed evenly across the hardware. This precision is what allows a Luxurious Glass installation to last for decades without requiring adjustment.
Tips for Homeowners During Construction
If you are currently in the middle of a renovation, here is how you can help ensure the highest glass cutting precision:
● Finish Tile First: Never measure for glass until the tile is fully installed and grouted. The thickness of the thin-set and tile can change your opening dimensions by half an inch or more.
● Check for Plumb: Use a long level to check your walls. If you see a gap, point it out to your contractor before the final measurement.
● Avoid DIY Measuring: Professional glass installers use deductions for hinges and seals that are not intuitive to the average person.
Conclusion: Why Precision is the Luxurious Standard
In the architectural glass industry, the difference between a "good" job and a "luxurious" one is measured in fractions of an inch. Understanding glass cutting precision and the role of fabrication tolerances ensures that your home reflects the quality you deserve. By accounting for out of square walls and choosing custom fit glass, you avoid the pitfalls of standard sizes and invest in a safer, more beautiful home.
At Luxurious Glass, we take pride in our craft. We are your neighbors, and we treat every installation as if it were in our own home. From the first laser measurement to the final polish, our 50 years of experience are your guarantee of excellence.
Contact Luxurious Glass today and get a detailed estimate for your custom glass project.
Frequently Asked Questions
What happens if my walls are significantly out of square?
At Luxurious Glass, we specialize in solving this problem. We use laser technology to map the wall's slope and order the glass with a "tapered cut." This ensures the glass follows the wall's line perfectly while maintaining a uniform, leak-proof gap.
Why can't you just trim the glass on-site if it doesn't fit?
Most architectural glass in Naples must be tempered for safety per the Florida Building Code. Once glass is tempered, any attempt to cut, drill, or trim it will cause the entire pane to shatter into small granules. This is why glass cutting precision during the initial fabrication is so critical.
Does custom fit glass cost significantly more than standard sizes?
While the initial cost may be slightly higher, custom glass often saves money in the long run. Standard doors frequently require expensive "filler" strips or additional labor to force a fit, and they are more prone to leaks and hardware failure over time.
What is the standard tolerance for a shower door gap?
In high-end custom fit glass installations, we typically aim for a consistent 1/8-inch gap. This allows enough room for the door to swing freely without hitting the wall, while still being narrow enough to be effectively sealed against water.
How do I know if the glass I received meets ASTM standards?
ASTM C1036 and C1048 require specific visual inspections. For example, standard glass should be inspected from 10 feet away under normal lighting. If a minor scratch or seed is not visible from that distance, it is considered within tolerance. We always perform a final walkthrough to ensure your satisfaction.
Do you provide detailed estimates for complex custom shapes?
Absolutely. We have 50 years of experience handling everything from raked (angled) glass for staircases to complex cut-outs for steam showers. Our team will provide a comprehensive breakdown of the project before any glass is ordered.
