How Radius Window Glass Replacement Is Measured and Cut

Arched windows are architectural treasures. They add character, elegance, and a sense of history to any home. But when one breaks, the charm quickly fades. Replacing a curved or arched pane is not like replacing a standard rectangular window. Standard glass cutting methods do not work for curved shapes.

A radius window requires custom shape glass cutting that accounts for the unique curvature of the frame. The glass must be measured precisely, cut accurately, and installed carefully. Any error, even a fraction of an inch, can ruin the entire piece.

Every radius window is different, which is why accurate measuring and custom fabrication matter. Luxurious Glass produces bespoke glass panels designed to match the unique curves of your Naples home for a clean, precise installation.

This guide explains how radius window glass replacement is measured and cut, why custom shape glass cutting is essential for arched windows, and what homeowners should know about arch window repair.

The Challenge of Curved Glass

A radius window is any window with a curved top. The curve can be a gentle arch, a semicircle, or a dramatic Gothic point. Regardless of the shape, the glass must match that curve exactly.

Standard glass cutting techniques are designed for straight edges. They use straight scoring lines and rectangular templates. A curved shape requires a completely different approach. The glass must be cut along a continuous arc. The edges must be smooth and polished. And the fit must be perfect.

This is why radius window glass replacement is not a DIY project. The margin for error is tiny. Even a 1/8-inch mistake can make the glass unusable. The glass must be measured with precision tools and cut with specialized equipment.

For homeowners in Naples, where arched windows are common in both historic and modern homes, glass replacement services are essential for ensuring a proper fit.

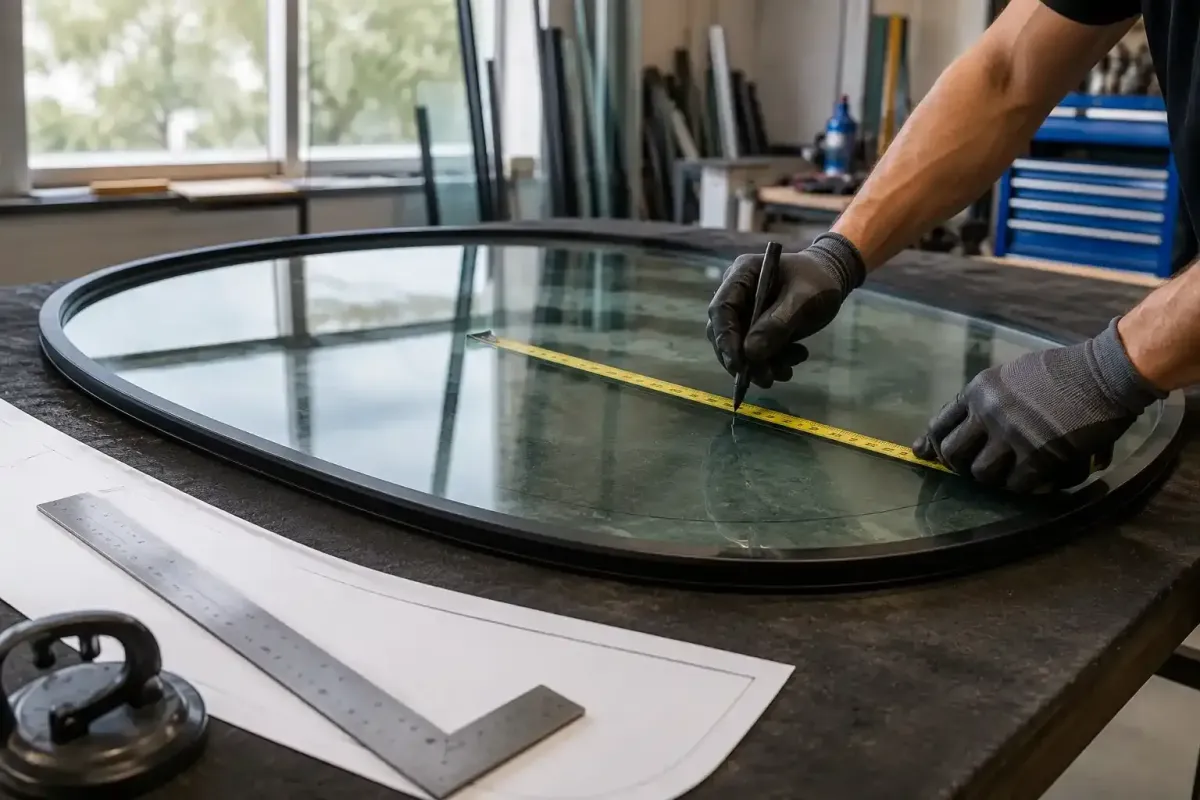

How Radius Window Glass Is Measured

The measurement process is the most critical step in radius window glass replacement. If the measurement is wrong, the glass will not fit. Here is how professionals do it.

Creating a Paper Template

The most reliable method is creating a paper template of the opening. Professional glass companies use heavy gauge paper that is pliable enough to trace accurately but durable enough not to tear.

Steps for creating a radius window template:

• The paper is fastened over the window opening.

• A ballpoint pen is used to trace the exact shape of the frame.

• For the curved section, the pen is guided carefully along the arch to capture the exact radius.

• Dots are marked at each corner of the opening.

• The paper is removed, and lines are drawn connecting the dots.

• The template is cut along the traced lines.

This template is then used to guide the cutting of the replacement glass. It is essential that the template is accurate, as the glass will be cut to match it exactly. For more complex projects, custom glass installations require the same level of precision.

Measuring the Radius

The radius measurement is crucial. The radius is the distance from the center of the arc to any point on the curve. For a half-circle window, the radius is half the width.

A standard carpenter's square can be used to measure the corner radius. For many RVs and older homes, a common radius is 3 inches, which is roughly the size of a standard coffee can lid. However, every window is different.

Professional glass companies often have radius gauges that allow them to measure the curve directly. These tools ensure the measurement is precise.

Allowing for Installation

When ordering a radius window glass replacement, the glass must be slightly smaller than the opening. The general rule is to order the glass 1/8 inch shorter than the measured height to allow room for out-of-square frames and easier installation.

This gap also accommodates expansion and contraction, which is important in a coastal climate like Naples.

Need a Radius Window Glass Replacement That Fits Perfectly?

Luxurious Glass provides professional radius window glass replacement for Naples homeowners. From precise measurement to custom shape glass cutting, we handle every step with care.

Custom Shape Glass Cutting: How It Is Done

Once the template is ready, the cutting process begins. Standard glass cannot simply be scored and snapped along a curve. Custom shape glass cutting requires specialized equipment and expertise.

Professional Glass Cutting Equipment

Professional glass shops use automated cutting machines that can be controlled by a computer. These machines can cut glass up to 20mm thick and can handle complex shapes, including circles, arches, and irregular curves, meeting AS/NZS 4667:2000 industry standards.

For the most complex shapes, waterjet cutting is used. Waterjet cutting uses a high-pressure stream of water mixed with an abrasive to cut through glass with exceptional accuracy. It produces smooth, professional edges and can cut virtually any shape.

Why professional equipment matters:

• Precision: Computer-controlled machines ensure the cut is accurate to within a fraction of a millimeter.

• Edge quality: Waterjet cutting leaves a smooth, polished edge that does not require additional finishing.

• Complex shapes: Automated equipment can handle curves, circles, and irregular shapes that are impossible to cut by hand.

Cutting Before Toughening

An important rule in custom shape glass cutting is that the glass must be cut before it is toughened (tempered). Tempered glass is heat-treated to be four to five times stronger than standard glass. However, attempting to cut or drill tempered glass after the heat treatment will cause it to shatter.

This means that the radius window glass replacement must be cut to the exact shape and size before the tempering process. Any customization, such as holes for hardware or edge notches, must be done at this stage.

After cutting, the glass is heat-treated in a tempering furnace. It is heated to over 1,100 degrees Fahrenheit and then cooled rapidly. This creates the internal tension that gives tempered glass its strength. This process makes the final piece of glass safe and durable for its application.

Understanding safety glass standards helps homeowners appreciate why professional fabrication is essential.

Arch Window Repair: Professional vs. DIY

Arch window repair is tempting to DIY, but it is rarely successful. The process of removing broken glass from an arched frame is hazardous. The glass is often located at the top of a ladder. And the curved shape makes the installation much more difficult.

What a professional arch window repair involves:

• Safe removal: The broken glass is carefully removed, and the frame is cleaned.

• Accurate template: A precise template is created from the opening.

• Custom cutting: The replacement glass is cut to the exact shape using specialized equipment.

• Professional installation: The glass is installed with the correct sealants and hardware.

For homeowners who value their time and safety, professional arch window repair is the only sensible option. A poorly installed piece of glass can leak, fail, or even fall out of the frame.

Knowing how tempered glass is made explains why cutting must happen before tempering and why replacement is not a simple DIY task.

Why Naples Homes Need Professional Radius Window Glass Replacement

Naples is home to many beautiful arched windows. From the historic homes of Old Naples to the modern estates along the coast, arched windows are a popular architectural feature. But coastal conditions accelerate wear and tear.

Salt air corrodes window seals. Humidity causes condensation between panes. Storm damage is always a risk. When a radius window fails, it must be replaced quickly and correctly.

Professional radius window glass replacement ensures the new glass fits perfectly, withstands the coastal environment, and looks beautiful. A poorly replaced arched window can detract from the home's appearance and cause moisture problems.

The table below compares professional and DIY methods for radius window glass replacement.

Source: NGA Technical Bulletins & Heavy Glass Design

How Luxurious Glass Handles Radius Window Glass Replacement

Luxurious Glass has the experience and equipment needed for radius window glass replacement. We serve homes throughout Naples and understand the challenges of coastal conditions.

What we offer:

• On-site measurement: We come to your home and measure the window opening.

• Precise templates: We create an accurate paper template for the glass cutting.

• Custom fabrication: We cut the glass to the exact shape and temper it for safety.

• Professional installation: We remove the old glass, install the new piece, and seal it properly.

• Coastal-grade materials: We use sealants and hardware designed for Florida's climate.

We also offer tempered and laminated glass options for added safety and durability. Laminated glass holds together even when cracked, providing an additional layer of protection.

For homeowners interested in other custom glass solutions, wall mirrors are another application where custom cutting is essential.

Conclusion

Replacing a radius window is not a simple DIY project. It requires precision measurement, custom shape glass cutting, and professional installation. Any error in measurement can ruin the glass.

Luxurious Glass provides complete radius window glass replacement services for Naples homeowners. We handle the entire process, from on-site measurement to the final installation. Our custom-cut glass is tempered for safety, and we use coastal-grade materials to ensure longevity.

If you have a broken arched window, do not attempt to fix it yourself. Contact a professional glass company that understands the complexities of radius glass replacement. Our team is ready to help you restore the beauty of your home.

Contact us today and we will visit your home, measure your arched window, and create a perfect replacement piece.

Frequently Asked Questions

How is radius window glass replacement measured?

It is measured by creating a precise paper template of the opening. The radius is measured using tools or gauges, and the glass is ordered slightly smaller to allow for installation.

What is custom shape glass cutting?

Custom shape glass cutting is the process of cutting glass into non-rectangular shapes, such as arches, circles, or irregular curves. This requires specialized equipment and professional expertise.

Can I perform a DIY arch window repair?

Arch window repair is difficult and potentially dangerous. The curve makes the glass harder to cut and install, and working at a height increases the risk of injury. Professional arch window repair is strongly recommended.

Why is radius window glass replacement more expensive than standard glass?

The process involves precise measurement, custom cutting, and specialized equipment. The glass must be cut before tempering, adding to the complexity. The price reflects the additional time and expertise required.

How long does radius window glass replacement take?

The process can take several days to a week. This includes the site visit, template creation, custom cutting and tempering, and final installation. Complex shapes or custom hardware may add time.

Do new radius windows come with a warranty?

Yes. A reputable glass company like Luxurious Glass offers a workmanship and product guarantee on custom glass replacements.
